This software can be used with the ASICs and revisions, with the indicated release quality. ASIC revisions available at the time of this release are assumed to be supported, unless otherwise indicated. Supported ASICs Memory configuration and usage
  • QCS6490 ASIC (memory map is same for QCS5430)
  • Q-X7181 ASIC (memory map is same for IQ-X5121)

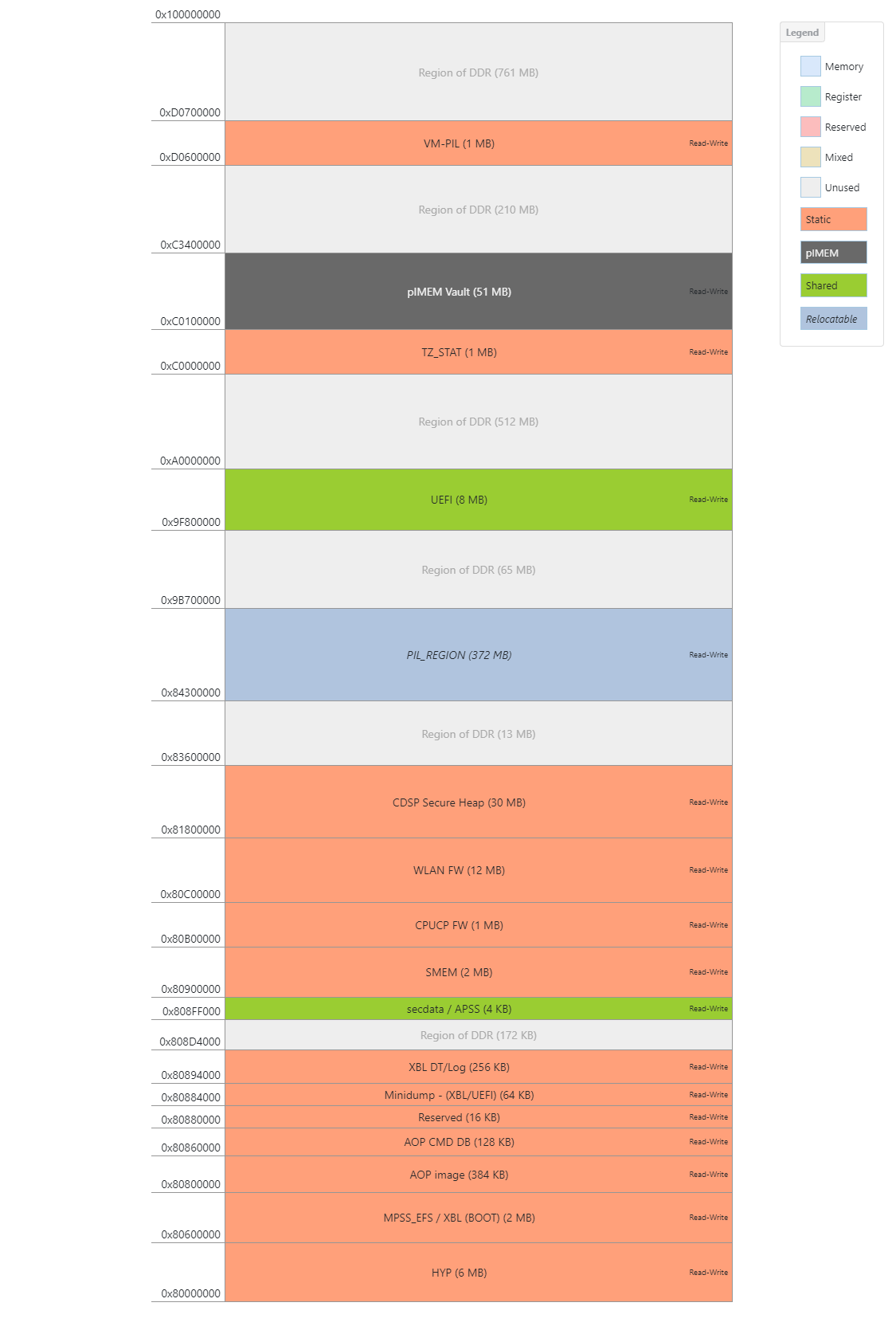

The following figure shows the run-time memory map for the QCS6490 ASIC.

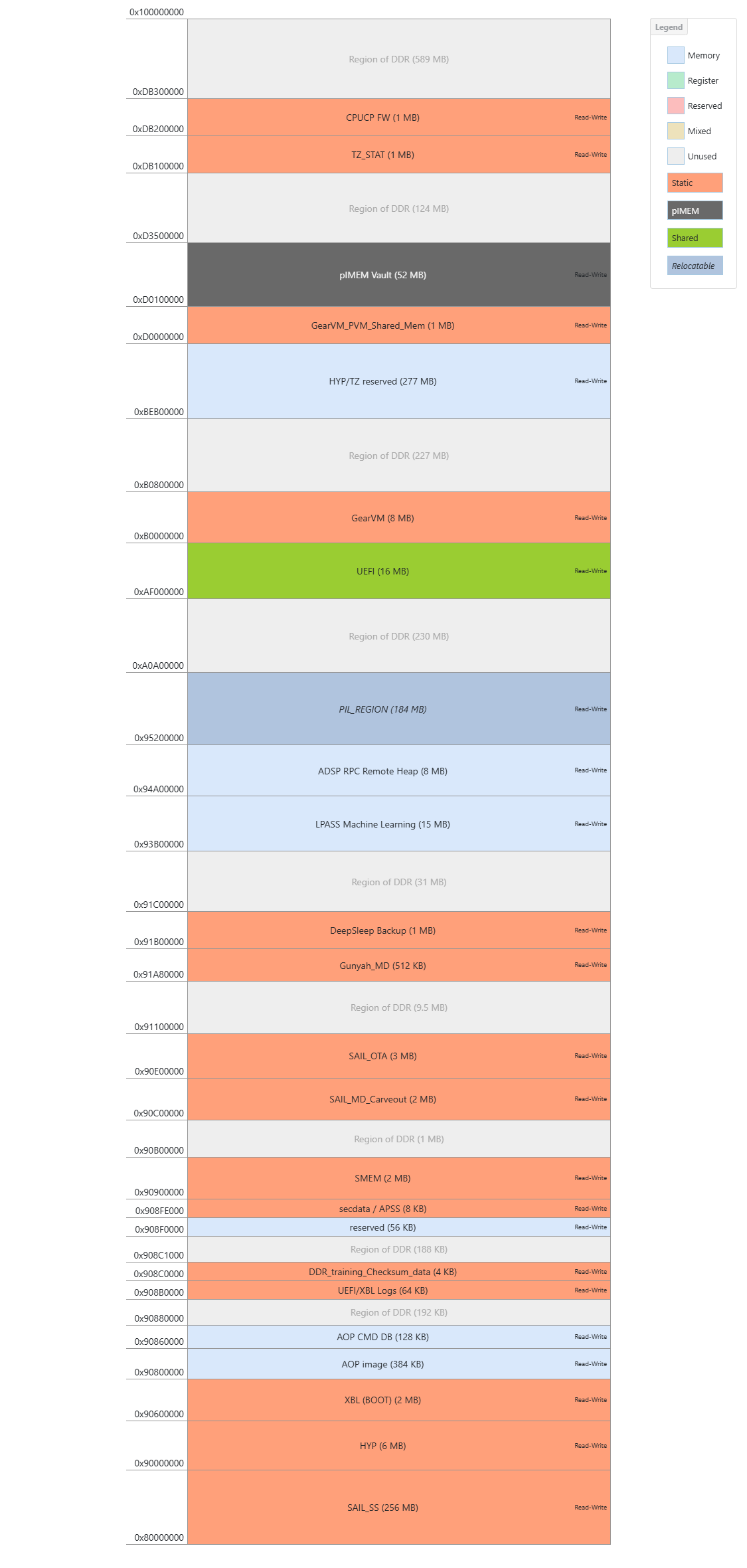

IQ-9075 ASIC The following figure shows the run-time memory map for the IQ-9075 ASIC.

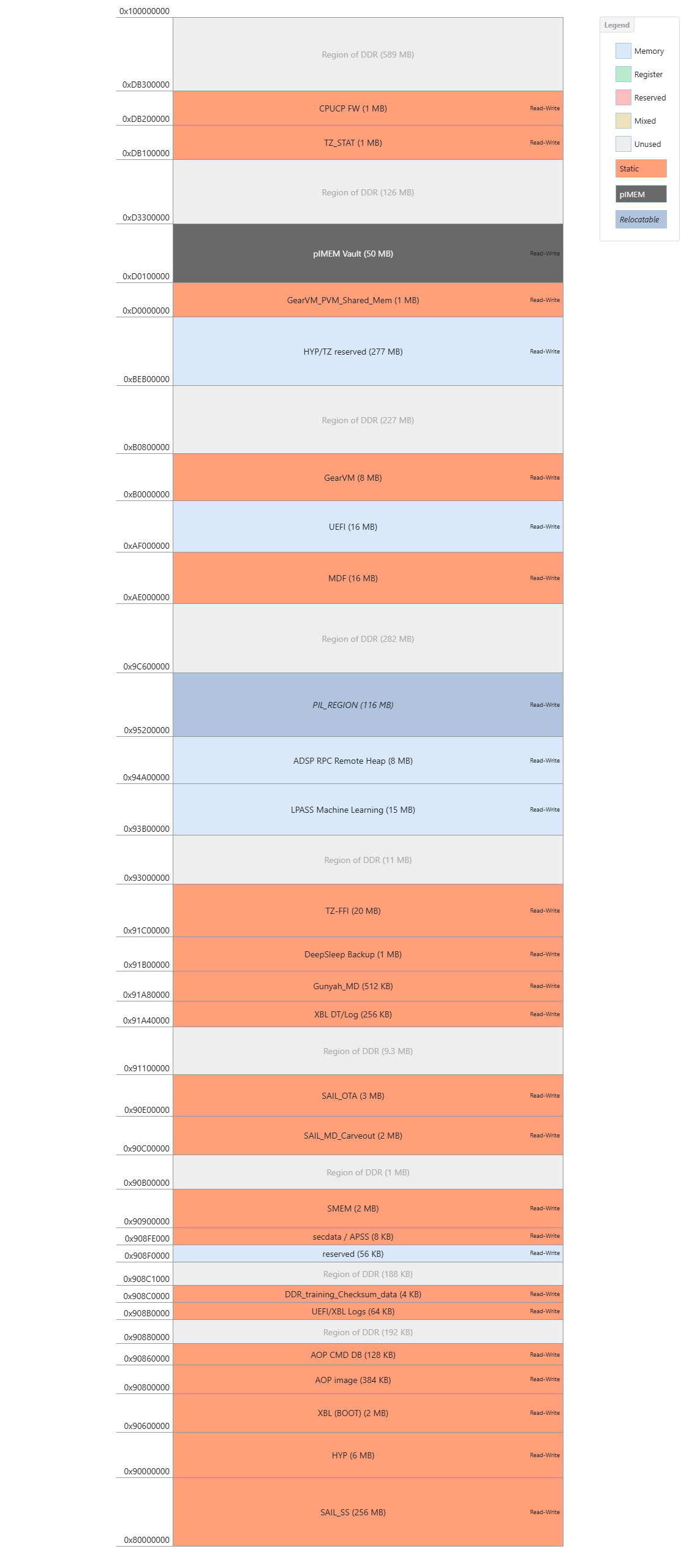

IQ-8300 ASIC The following figure shows the run-time memory map for the IQ-8300 ASIC.
IQ-615 ASIC The following figure shows the run-time memory map for the IQ-615 ASIC.

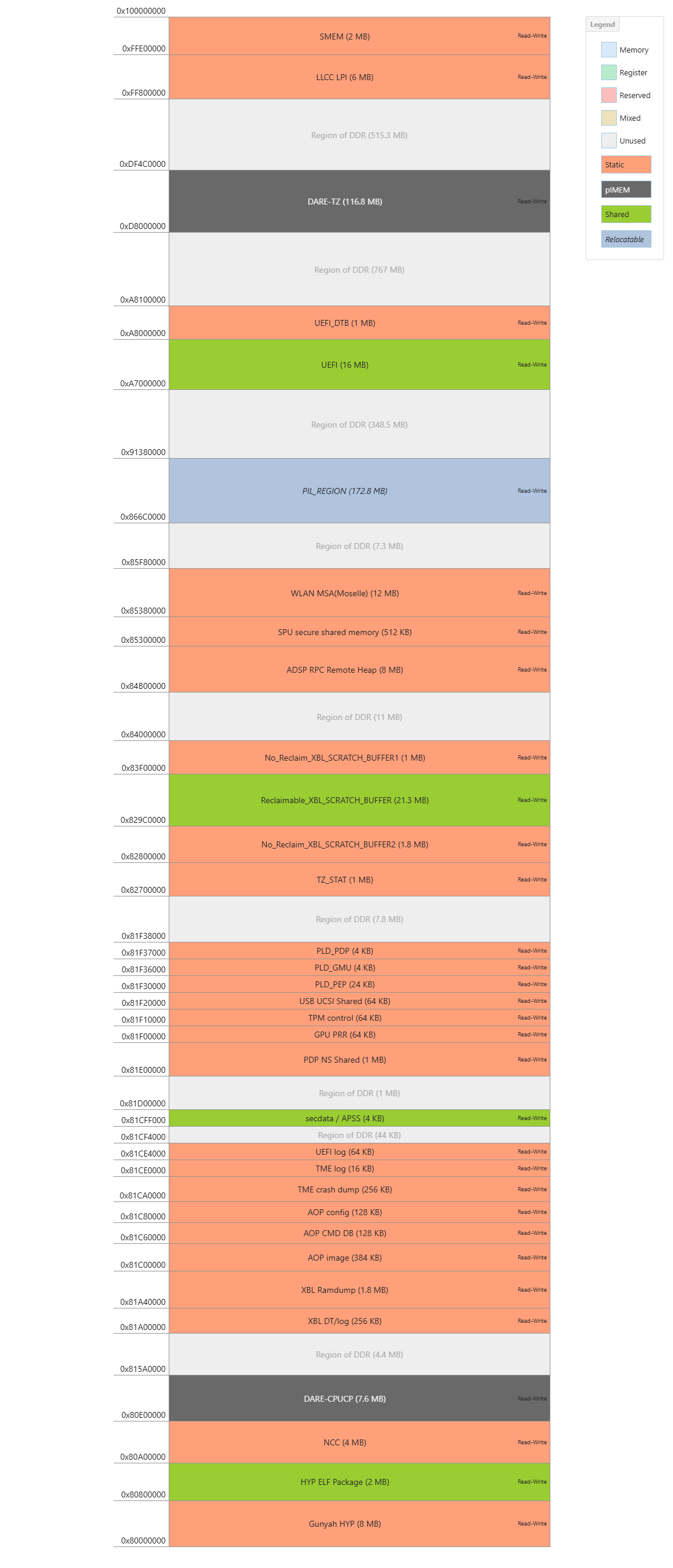

IQ-X7181 ASIC The following figure shows the run-time memory map for the IQ-X7181 ASIC.
