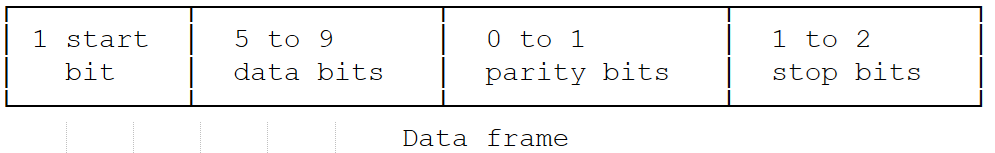

UART (Universal Asynchronous Receiver-Transmitter) transmits data asynchronously using start and stop bits instead of a clock signal. The receiving UART reads bits at a specific frequency known as the baud rate.

Key Parameters

Baud rate — Communication speed (bits per second)
Start/Stop bits — Frame delimiters
Parity bit — Optional error checking
Data bits — 5–9 bits per frame

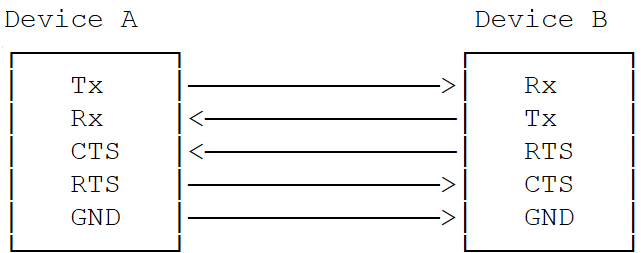

Flow control — Hardware handshaking via CTS/RTS

Transfer Modes by Subsystem

Subsystem	Transfer Mode	Baud Rates	Notes
Linux	FIFO, CPU DMA	300 bps – 4 Mbps	DMA ideal for Bluetooth modules
Boot (UEFI)	FIFO only	Up to 115200	5–8 bits per character
aDSP	FIFO only	115200, 230400, 460800, 921600, 1M, 3M, 6M	5–8 bits per character

Interface Components

Device Tree Sources

Platform	File
Dragonwing IQ-9075	`arch/arm64/boot/dts/qcom/lemans.dtsi`

APIs

Subsystem	Header
Linux	`include/linux/tty.h`
Boot	`QcomPkg/Include/HSUart.h`
aDSP	`adsp_proc/core/api/buses/uart.h`

Software Configuration

Linux Device Tree Example

4-wire UART (with flow control):

uart7: serial@99c000 {
    compatible = "qcom,geni-uart";
    reg = <0 0x0099c000 0 0x4000>;
    clocks = <&gcc GCC_QUPV3_WRAP0_S7_CLK>;
    clock-names = "se";
    pinctrl-names = "default";
    pinctrl-0 = <&qup_uart7_cts>, <&qup_uart7_rts>,
                <&qup_uart7_tx>, <&qup_uart7_rx>;
    interrupts = <GIC_SPI 608 IRQ_TYPE_LEVEL_HIGH>;
    power-domains = <&rpmhpd SC7280_CX>;
    interconnects = <&clk_virt MASTER_QUP_CORE_0 0 &clk_virt SLAVE_QUP_CORE_0 0>,
                    <&gem_noc MASTER_APPSS_PROC 0 &cnoc2 SLAVE_QUP_0 0>;
    interconnect-names = "qup-core", "qup-config";
    status = "disabled";
};

GPIO pinctrl:

qup_uart7_cts: qup-uart7-cts-state { pins = "gpio28"; function = "qup07"; };
qup_uart7_rts: qup-uart7-rts-state { pins = "gpio29"; function = "qup07"; };
qup_uart7_tx:  qup-uart7-tx-state  { pins = "gpio30"; function = "qup07"; };
qup_uart7_rx:  qup-uart7-rx-state  { pins = "gpio31"; function = "qup07"; };

QUPAC access control:

// 4-wire HS UART
{ QUPV3_0_SE7, QUPV3_PROTOCOL_UART_4W, QUPV3_MODE_FIFO, AC_HLOS, TRUE, TRUE, FALSE }

// 2-wire UART (no flow control)
{ QUPV3_0_SE5, QUPV3_PROTOCOL_UART_2W, QUPV3_MODE_FIFO, AC_HLOS, TRUE, FALSE, FALSE }

Kernel Configuration

Edit kernel_platform/kernel/arch/arm64/configs/qcom_defconfig:

CONFIG_QCOM_GENI_SE=y
CONFIG_SERIAL_QCOM_GENI=y

Enable the UART node in the device tree:

+serial1 = &uart7;

+&uart7 {
+    status = "ok";
+};

Verification

Verify UART device registration

ls /dev/ttyHS*
# Expected: /dev/ttyHS1

dmesg | grep ttyH
# Expected: 99c000.serial: ttyHS1 at MMIO 0x99c000 ...

Configure UART settings

stty -F /dev/ttyHS1 115200

Run loopback test

Open two SSH terminals.Terminal 1 (write):

echo "Hello UART" > /dev/ttyHS1

Terminal 2 (read):

cat /dev/ttyHS1

Expected output: Hello UART

Debugging

Enable Debug Logs

mount -t debugfs none /sys/kernel/debug

echo -n "file qcom_geni_serial.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file qcom-geni-se.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file serial_core.c +p" > /sys/kernel/debug/dynamic_debug/control

dmesg | grep -i uart
dmesg | grep ttyHS

Troubleshooting

UART Device Not Detected (/dev/ttyHS* missing)

lsmod | grep qcom_geni
cat /proc/device-tree/soc@0/geniqup@*/serial*/status
ls -la /dev/tty*

Verify device tree status is "ok"
Confirm CONFIG_SERIAL_QCOM_GENI=y in kernel config
Check GPIO pin configurations and QUPAC access control settings

Data Transmission Failures / Garbled Data

# Check current UART config
stty -F /dev/ttyHS1 -a

# Set baud rate
stty -F /dev/ttyHS1 115200

# Enable/disable hardware flow control
stty -F /dev/ttyHS1 crtscts    # enable
stty -F /dev/ttyHS1 -crtscts   # disable

Verify baud rate matches on both ends
Check flow control configuration (CTS/RTS)
Test with loopback mode first

Permission Denied

ls -la /dev/ttyHS*
usermod -a -G dialout $USER

High CPU Usage / Slow Transfer

Switch from FIFO to DMA mode for high-speed transfers
Check interrupt statistics: cat /proc/interrupts | grep uart
Review power management: cat /sys/kernel/debug/pm_genpd/pm_genpd_summary

Debugging Checklist

Kernel config includes CONFIG_SERIAL_QCOM_GENI=y
Device tree status set to "ok" for UART node
GPIO pins properly configured and mapped
QUPAC access control properly configured
Baud rate matches on both sides
Flow control settings are consistent
Device file permissions are correct
