Install or upgrade the SoftSKU feature packs

You can upgrade the QCS5430 soft stock keeping unit (SKU) feature packs using the Qualcomm^® wireless edge services (WES) license. For more information about the feature packs, see QCS5430: Feature packs. Important This feature is applicable to QCS5430.

​

Download the evaluation license

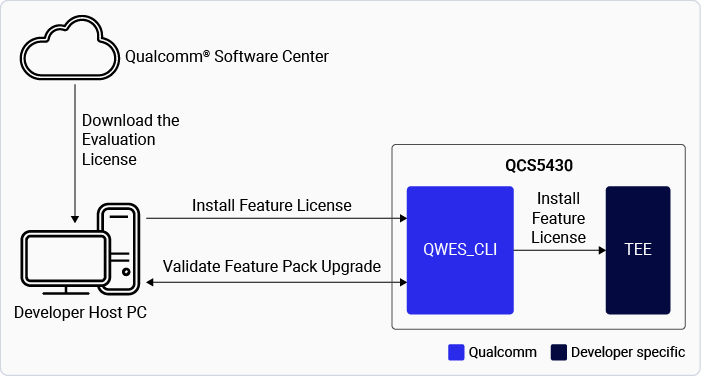

The figure shows the process of downloading and upgrading the QCS5430 SoftSKU feature packs. Figure : Upgrade QCS5430 SoftSKU feature packs The table lists the feature packs along with the corresponding links to download their evaluation licenses. Table : Download evaluation license

​

Prepare the device

1. Set up the Wi-Fi on the device and get the device-ip-address.
2. Connect to the device using SSH: ssh root@device-ip-address For instructions, see Qualcomm Linux Build Guide.
3. Remount the file system with read/write permissions:
   mount -o rw,remount /usr

4. Push the license to the device:
   scp /path/to/<QCM5430 FP*>.pfm root@device-ip-address:/data/


​

Install the evaluation license

1. Ensure that the following prerequisites are met:

   • RPMB is provisioned.

     To verify if RPMB is provisioned, see Verify RPMB provision status.

   • The qwes_cli tool is available in the device.

2. Install the Qualcomm WES command-line interface tools:
   • Help: qwes_cli –help.
   • Default tools shipped with the Qualcomm Linux software product.
3. Install the evaluation license:
   ssh root@device-ip-address
   qwes_cli -f /data/<QCM5430 FP*>.pfm install

4. Verify license installation:
   qwes_cli list


   Command	Output
   Check the serial number:

   qwes_cli list | # qwes_cli list Running GetAllSerialNumber test with multithread Disabled Success. Len = 25 Parsing 2 serial numbers Serial Number: 15b3 Serial Number: 3e52b512f2f47851a40fa5b30000018c86261aa1 | | :— |

5. Ensure you restart the device for the license to take effect.

​

Verify the feature pack upgrade

The two ways to verify the feature packs are:

• Verify the feature pack upgrade by using the following commands:

  ssh root@device-ip-address
  cat /proc/device-tree/model


  The feature pack ID model is displayed in the output:

  • FP2: Qualcomm Technologies, Inc. qcs5430 fp2 addons rb3gen2 platforms
  • FP2.5: Qualcomm Technologies, Inc. qcs5430 fp2p5 addons rb3gen2 platform
  • FP3: Qualcomm Technologies, Inc. qcs5430 fp3 addons rb3gen2 platform

  Note The feature pack and model ID mapping will be {Feature Pack2: fp2 ; Feature pack2.5: fp2.5; Feature pack 3: fp3}.

• Verify feature pack ID from the following UEFI logs:

  FP1	SoftSKU ID is disabled. The default setting is 1.
  FP2	SoftSKU ID is enabled. updated here: 2
  FP2.5	SoftSKU ID enabled. updated here: 8
  FP3	SoftSKU ID enabled. updated here: 3

​

Manage the device licenses

You can perform the following operations to manage your device licenses:

• Upgrade the feature pack or apply a new license.

  • You can upgrade or downgrade the feature pack license as needed.
  • To apply a new license (whether upgrading or downgrading), the existing license must be removed first.
  • After the old license is removed, apply the license for the required feature pack.
  • This process ensures that the correct feature pack is enforced.

• Remove the evaluation license.

  • Get the license serial number:

    qwes_cli list
    Running GetAllSerialNumber test with multithread Disabled
    Success.  Len = 25
    Parsing 2 serial numbers
    Serial Number: 15b3
    Serial Number: 3e52b512f2f47851a40fa5b30000018c86261aa1


  • Remove the license:

    ssh root@device-ip-address
    qwes_cli -s 3e52b512f2f47851a40fa5b30000018c86261aa1 remove
    Serial number length 20
    Remove License is successful.


  • Verify if the removed license serial number doesn’t appear in the license list:

    qwes_cli list
    Running GetAllSerialNumber test with multithread Disabled
    Success.  Len = 4
    Parsing 1 serial numbers
    Serial Number: 15b3


  • Ensure you restart the device for the removal of the license to take effect.

​

Feature pack license - Persistence over software upgrades

• The license is installed in persistent secure storage, RPMB.
• When the license is installed successfully, its metadata is stored in RPMB, and a copy is maintained in the data partition.
• Even if user data is erased, the license remains preserved in RPMB, ensuring that the device functionality isn’t impacted.

Note This feature is available to licensed users with authorized access to manage feature pack licenses. If you have access, see Qualcomm Linux Wireless Edge Services Guide.

​

Next steps

• To learn about Qualcomm WES, see Qualcomm WES.
• To develop applications that offer hardware-based attestation, zero-touch device provisioning, and chipset feature management, see: Qualcomm Linux Wireless Edge Services Guide. This feature is available to licensed users with authorized access.
