LPDDR Memory - Qualcomm Dragonwing Documentation

The Qualcomm Dragonwing IQ-8275 features an advanced memory subsystem designed for high-performance computing applications.

Specifications

Specification	Details
Memory Type	LPDDR5X / LPDDR5 SDRAM
Configuration	Six-channel non-PoP
Maximum Density	36 GB
Clock Speed	Up to 3200 MHz
Data Width	6 × 16-bit (96-bit total)
Standards	JEDEC LPDDR5X/LPDDR5 compliant

Architecture

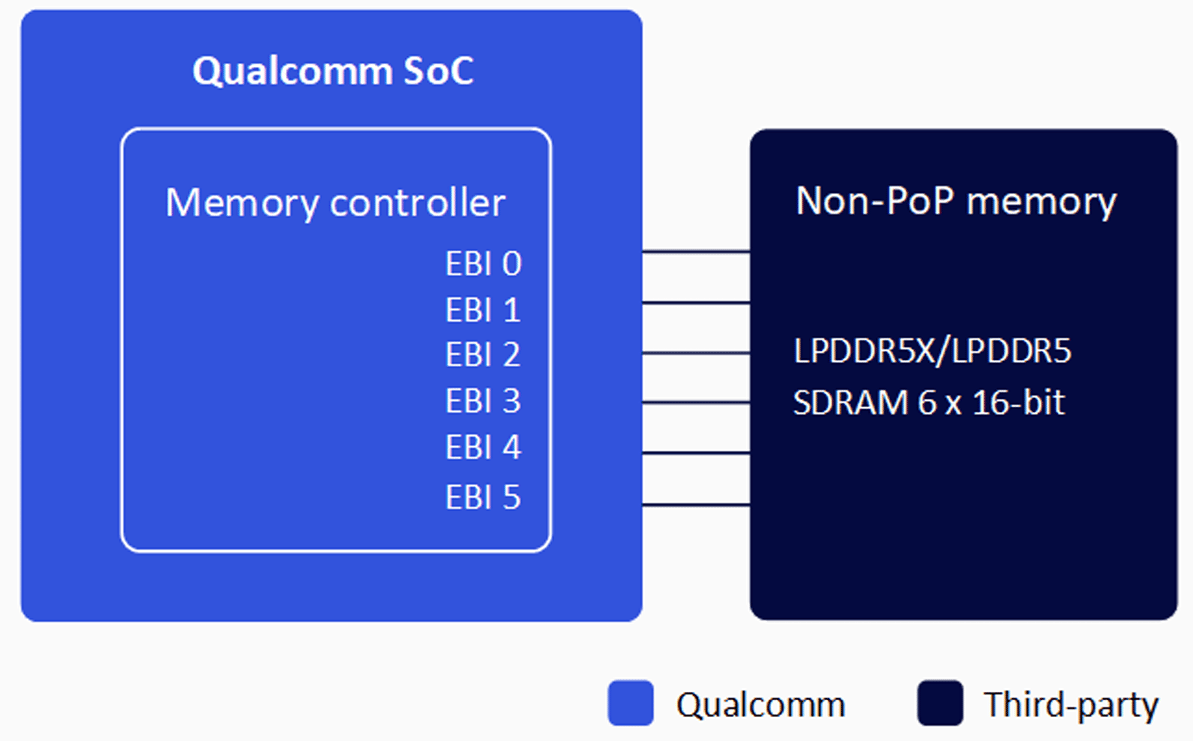

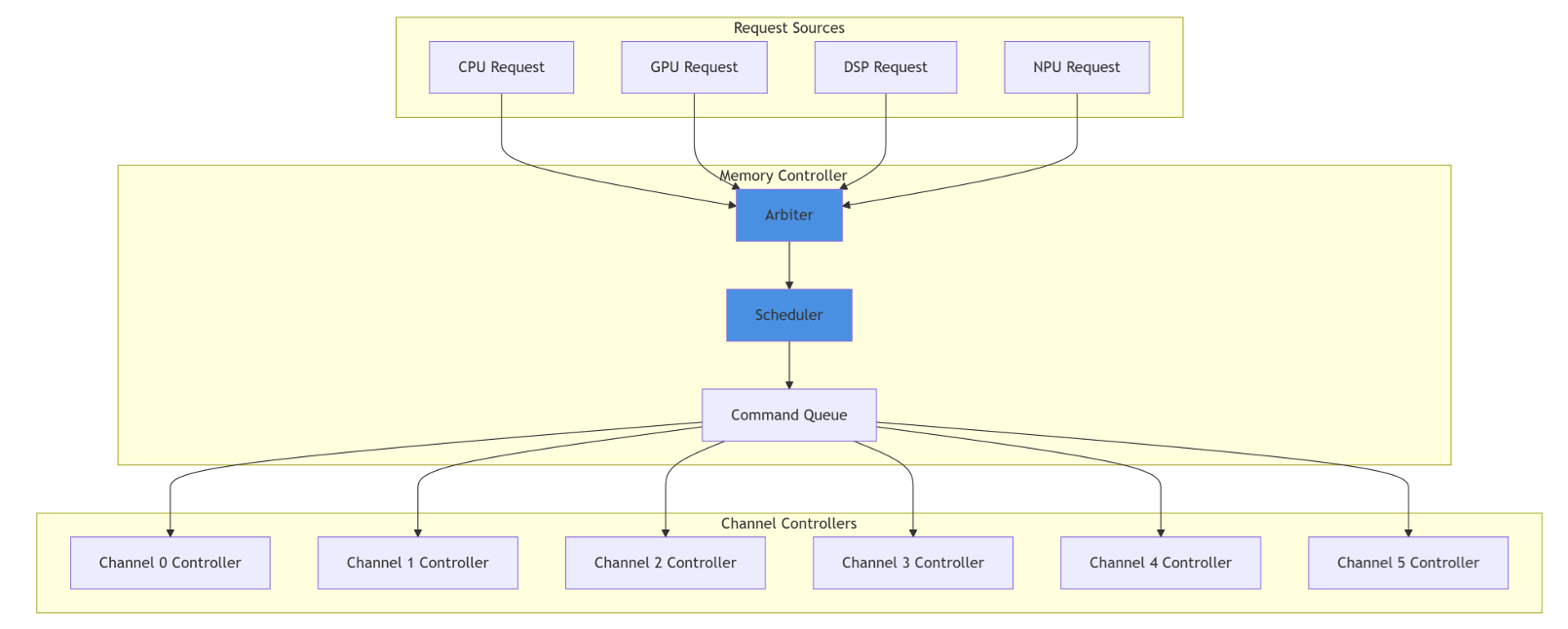

The IQ-8275 memory controller supports high-bandwidth, low-latency operations across six independent 16-bit channels with dynamic frequency scaling for power optimization.

Supported DRAM Components

All DRAM components must be selected from the Qualcomm Preferred Vendor List (PVL).

Access the PVL database

Navigate to the Qualcomm PVL and sign in with your Qualcomm account.

Download the PVL file

Download the QRD Hardware - Preferred Vendor List (PVL) Excel file.

Filter for IQ-8275 memory

Filter by Type: Memory and Chipset: IQ-8275.

Initialization

Setup and Configuration

Prerequisites

IQ-8275 development board with PVL-compliant LPDDR5X or LPDDR5 DRAM
Canonical Ubuntu software package
XBL bootloader with DSF (DDR System Firmware)
UART debug cable and SSH access

Initial Setup

Verify DRAM component

Confirm your DRAM part number is listed in the Qualcomm PVL for IQ-8275.

Flash the software package

fastboot flash xbl xbl.elf
fastboot flashall

Boot and verify detection

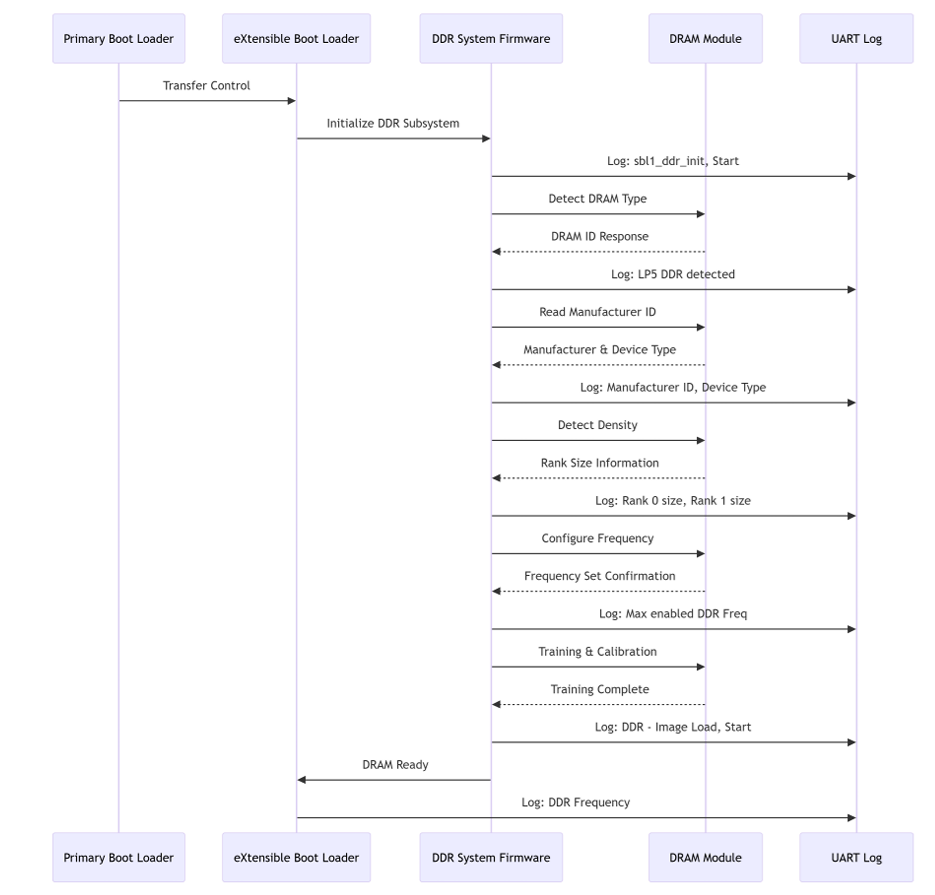

Connect UART console (115200 baud, 8N1) and watch for initialization messages:

sbl1_ddr_init, Start
LP5 DDR detected
Manufacturer ID = XXXX, Device Type = XXXX
Max enabled DDR Freq = 3200 MHz

Frequency Scaling

cat /sys/class/devfreq/soc:qcom,cpu-llcc-ddr-bw/cur_freq
cat /sys/class/devfreq/soc:qcom,cpu-llcc-ddr-bw/available_frequencies
echo <frequency> > /sys/class/devfreq/soc:qcom,cpu-llcc-ddr-bw/userspace/set_freq

Debugging

dmesg | grep -i ddr
cat /proc/meminfo
cat /sys/class/devfreq/soc:qcom,cpu-llcc-ddr-bw/cur_freq

Troubleshooting

DRAM Not Detected at Boot

Symptoms: No DRAM detection in UART logs; boot hangs at XBL stage.

Verify DRAM modules are properly seated
Measure VDD and VDDQ voltages — ensure they meet JEDEC specifications
Contact Qualcomm support if hardware is verified

DRAM Initialization Fails

Symptoms: Boot hangs after DRAM detection; training/calibration failures.

Check temperature and voltage stability
Verify signal quality on all channels
Try booting at a lower frequency

Performance Below Specification

cat /sys/class/devfreq/soc:qcom,cpu-llcc-ddr-bw/cur_freq
cat /sys/class/devfreq/soc:qcom,cpu-llcc-ddr-bw/governor
cat /sys/class/thermal/thermal_zone*/temp

Set performance governor:

echo performance > /sys/class/devfreq/soc:qcom,cpu-llcc-ddr-bw/governor

Resources

Resource	URL
JEDEC LPDDR Standards	https://www.jedec.org/category/technology-focus-area/mobile-memory-lpddr-wide-io-memory-mcp
Qualcomm PVL	https://www.qualcomm.com/preferred-vendor-list
Qualcomm Software Center	https://softwarecenter.qualcomm.com/#/
